LSZH Jacket Self
Description
Basic Info.
| Model NO. | GJYXFCH |
| Core | 2-24 |
| Certification | RoHS, CE, ISO9001, VDE, CCC |
| Brand | Efon |
| Sheath Material | Lszh/PE Sheath/Flame Retardant Sheath/Anti-Rodent |
| Material of Jacket | UV and Flame Resistant LSZH |
| Installation Tensile | 600n |
| Certifications | ISO9001/Ce/RoHS |
| Warranty (Year) | 2 |
| Mesenger Member | 1.0/1.2 mm or 7*0.33 Steel Wire |
| Fiber Options | G657A1, G657A2, G652D |
| Strength Member | 1.0mm Steel Wire or FRP |
| Fiber Count | 1-4 |
| Applications | Outdoor Aerial |
| Cable Structure | Tight Buffer Self-Support FTTH Cable |

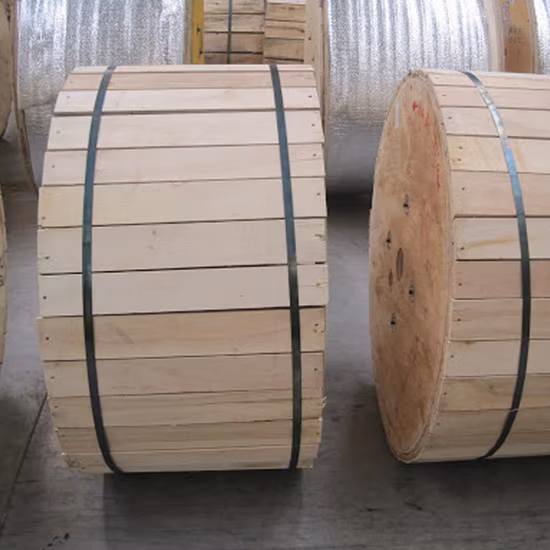

| Transport Package | Wooden Drum Iron-Wooden Drum with Fumigated or Not |
| Specification | CE |
| Trademark | OEM |
| Origin | China |
| HS Code | 85447000 |
| Production Capacity | 10000km/Week |
Product Description
Description
Self-supported flat drop cable. The cable cross section is a fig.8 made a steel wire strength member.
Cable Structure
Product Construction
Fiber:
250µm colorfiber
Fiberglass reinforced plastic (FRP) or Steel Wire.
Self-supported Member:
Steel Wire
Outer Jacket:
UV and Flame resistant LSZH
Features
Compact, soft, flexible, easyto install.
Applications
Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Structure and Technical Specifications
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength (N/100mm) | Crush Resistance (N/100mm) | |||
| Short Term | Long Term | Short Term | Long Term | ||||
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 | |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 | |
Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
2.The cable core use the colored coating fiber of 250μm.
3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used
